It's not all about lift.......BUT......!!!!!

Post by sae70 » Tue Mar 25, 2008 10:20 pm

I've been keeping a record of what peeps have done with regards to acheiving suspension lift :)

And here it is :D

These figures are the average of the front and rear ground to bottom of chassis rail measurements made as follows;


FRONT-In line with the center line of front body mount outrigger on the chassis rail

REAR-In line with the rear of the next body mount outrigger towards the back of the car (just in front of the rear tyre)


9" (standard Vit with standard tyres - 27" from ground to top of tyre)


11.5" (B4V 1.25" coil spacers + 10mm extra spacer in the rear with 30" tyres - 29" from ground to top of tyre) this is a LWB


13" (B4V 1.25" coil spacers & standard LWB GV springs with 235/75/15 tyres - 28.75" from ground to top of tyre)


14" (Calmini 3" suspension lift with 31x10.5x15 tyres - 30" from ground to top of tyre)


14.5" (B4V 1.25" coil spacers & LWB GV springs with 265/65/16 tyres - 32" from ground to top of tyre) this is a LWB


14.75" (B4V 1.25" coil spacers & OME +50mm SWB GV springs with 31x10.5x15 tyres - 30" from ground to top of tyre)


17.5" (live axle conversion using standard vit springs with 31" tyres)


20" (coiled sammy live axle conversion with 32" tyres)


I'm not suggesting for one moment that if you carry out the same mods on your truck that you will get the same results but it makes for an interesting read I thought :D

I think the info is accurate but if you recognise your set up and I've made a mistake PM me and I'll correct it :)

:lol: :lol: :lol:
Last edited by sae70 on Sun May 25, 2008 5:51 pm, edited 7 times in total.
Regards

Steven

User avatar
suzuki_mad
Offroad Guru
Offroad Guru
Posts: 762
Joined: Thu Nov 22, 2007 2:50 pm
My Vehicle(s): Vitara / SJ / Jimny / Other
Location: warrington cheshire

Re: It's not all about lift.......BUT......!!!!!

Post by suzuki_mad » Mon Mar 31, 2008 10:46 pm

got a new one to add

17.5 inches on the front using 31 inch tyres and live axle conversion with standard vit springs.

phil
Divers go down for longer on twins!

User avatar
MrHawk
Mud For Blood
Mud For Blood
Posts: 527
Joined: Fri Mar 28, 2008 8:16 pm
My Vehicle(s): Vitara / SJ / Jimny / Other
Location: Sweden
Contact:

Re: It's not all about lift.......BUT......!!!!!

Post by MrHawk » Tue Apr 01, 2008 2:33 pm

11.5" LWB with B4V spacers + 10mm extra spacer in the rear and 30" rubber, measuring 29".

User avatar
vitman
Mud Mad
Mud Mad
Posts: 296
Joined: Tue Feb 26, 2008 10:12 pm
My Vehicle(s): Vitara / SJ / Jimny / Other
Location: cheltenham

Re: It's not all about lift.......BUT......!!!!!

Post by vitman » Tue Apr 01, 2008 5:51 pm

20" to the bottom of chassis,coiled sammy live axle conversion with 32"grizzly claws.

User avatar
sae70
MUD NUT
MUD NUT
Posts: 3010
Joined: Thu Oct 11, 2007 10:04 pm
My Vehicle(s): Land Cruiser
Location: Essex
Contact:

Re: It's not all about lift.......BUT......!!!!!

Post by sae70 » Tue Apr 01, 2008 8:52 pm

:) :) :) 8)
Regards

Steven

User avatar
Bonez
Offroad Guru
Offroad Guru
Posts: 1398
Joined: Sat Jan 26, 2008 4:49 pm
My Vehicle(s): Vitara / SJ / Jimny / Other
Location: warwickshire

Re: It's not all about lift.......BUT......!!!!!

Post by Bonez » Sun May 25, 2008 10:55 am

vitman wrote:20" to the bottom of chassis,coiled sammy live axle conversion with 32"grizzly claws.



really want you do to that to mine :twisted: :twisted:


sorry for spam :oops: :oops:

redneck
New Member
New Member
Posts: 18
Joined: Fri Mar 28, 2008 7:41 pm

Re: It's not all about lift.......BUT......!!!!!

Post by redneck » Thu May 29, 2008 5:03 pm

Bonez wrote:
vitman wrote:20" to the bottom of chassis,coiled sammy live axle conversion with 32"grizzly claws.



really want you do to that to mine :twisted: :twisted:


sorry for spam :oops: :oops:

its alot of work but well worth it .

Nikon
Mud Mad
Mud Mad
Posts: 208
Joined: Wed Aug 06, 2008 6:16 pm
Location: Skewen / Neath

Re: It's not all about lift.......BUT......!!!!!

Post by Nikon » Fri Aug 22, 2008 10:28 pm

sae70 wrote:I've been keeping a record of what peeps have done with regards to acheiving suspension lift :)

And here it is :D

These figures are the average of the front and rear ground to bottom of chassis rail measurements made as follows;


FRONT-In line with the center line of front body mount outrigger on the chassis rail

REAR-In line with the rear of the next body mount outrigger towards the back of the car (just in front of the rear tyre)

:


being somewhat new to this car thing, any chance of a photo showing where you measured?
failing that, how many iches fromt front and back!

teamtom

Re: It's not all about lift.......BUT......!!!!!

Post by teamtom » Sat Aug 23, 2008 5:59 pm

as said in first post


FRONT-In line with the center line of front body mount outrigger on the chassis rail

REAR-In line with the rear of the next body mount outrigger towards the back of the car (just in front of the rear tyre)

User avatar
dean
Mud Mad
Mud Mad
Posts: 327
Joined: Wed Dec 24, 2008 12:55 pm
My Vehicle(s): Vitara / SJ / Jimny / Other
Location: sunny sheppey, north kent
Contact:

Re: It's not all about lift.......BUT......!!!!!

Post by dean » Fri Jan 02, 2009 6:32 pm

13" using offroad armoury 2.5" suspension lift kit, 2" body lift and 235/75/15 recip trail muds!!!!
Last edited by dean on Sun Feb 01, 2009 4:09 pm, edited 1 time in total.
if in doubt, give it a clout!!!!!!

User avatar
apd
Mud Mad
Mud Mad
Posts: 323
Joined: Tue Dec 05, 2006 6:10 pm
My Vehicle(s): Vitara / SJ / jeep
Location: Blokey in Bridgnorth!

Re: It's not all about lift.......BUT......!!!!!

Post by apd » Mon Jan 12, 2009 10:16 am

13'' 3/4 at the front & 14'' rear, b4v spacers lwb mk1 springs, b4v strut drop bkts, 4'' body lift 33/12.5/15 kumho venture mt tyres @ lots of smiles :D :D :D Ant "Tweety"

greasy mits
Playing in the mud
Playing in the mud
Posts: 44
Joined: Sun Nov 22, 2009 6:50 pm
My Vehicle(s): Vitara

Re: It's not all about lift.......BUT......!!!!!

Post by greasy mits » Tue Jan 12, 2010 6:36 pm

but what is the average to bottom of the diffs front and back cos to me thats where u want most clearence

User avatar
Shaunbrook
Got Muds
Got Muds
Posts: 63
Joined: Thu Oct 01, 2009 6:39 am
My Vehicle(s): Vitara (Tara)
Location: Llansantffraid-Ym-Mechain

Re: It's not all about lift.......BUT......!!!!!

Post by Shaunbrook » Wed Jan 13, 2010 12:18 am

viewtopic.php?f=15&t=11115



Try that dude theres a part on there were they shave the bottom part of the diff off and put a blanking plate on it=] Pretty nice job done to.
If at first you don't succeed, Just drive faster!!!!

redneck
New Member
New Member
Posts: 18
Joined: Fri Mar 28, 2008 7:41 pm

Re: It's not all about lift.......BUT......!!!!!

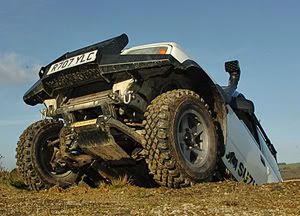

Post by redneck » Tue Oct 26, 2010 9:00 pm

redneck wrote:
Bonez wrote:
vitman wrote:20" to the bottom of chassis,coiled sammy live axle conversion with 32"grizzly claws.



really want you do to that to mine :twisted: :twisted:

sorry for spam :oops: :oops:

its alot of work but well worth it .


yes is well worth doing live axle conversion , just get stuck in and do it.
