 Changing a Thermostat on a Vitara?
Author Message

Post Changing a Thermostat on a Vitara?
Help! Newbie "Bob" needs some help!

Those that know me, know I don't "do" engines... after all, that's what garages do, and if we all did our own work they'd all go out of business, wouldn't they! :lol:

Anyway, this year, or rather next year!, I'm hoping to do more work myself on engines :shock: The white-not-descript-Vit-with-no-name needs a new thermostat, the previous owner told me that when I bought the truck off him... sooo,...

Bought one off eBay, and before I start taking things to bits... anyone got any pointers? How easy is it?

Anyone? Before I go out and buy a Haynes Manual? :lol: :wink:


Fri Dec 28, 2007 5:57 pm

Mud For Blood
Mud For Blood
User avatar

Joined: Fri Mar 09, 2007 10:07 pm
Posts: 502
Karma: 0

Location: stockton on tees
My Vehicle(s): SJ / Other
Membership Number: 0
Post Re: Changing a Thermostat on a Vitara?
i can rip the one off my vit engine and take pics tomorra if you like?

_________________


Fri Dec 28, 2007 7:06 pm
Profile

Post Re: Changing a Thermostat on a Vitara?
Oooh, you're a star!

Ta!

D...., errr, I mean Bob :lol:


Fri Dec 28, 2007 7:10 pm

Mud For Blood
Mud For Blood
User avatar

Joined: Fri Mar 09, 2007 10:07 pm
Posts: 502
Karma: 0

Location: stockton on tees
My Vehicle(s): SJ / Other
Membership Number: 0
Post Re: Changing a Thermostat on a Vitara?
no probs ill do it tomorra in between ripping the head off the SJ :evil:

_________________


Fri Dec 28, 2007 7:12 pm
Profile

MUD NUT
MUD NUT
User avatar

Joined: Thu Aug 04, 2005 10:06 pm
Posts: 3648
Karma: 0

Location: manchester
My Vehicle(s): jimny , picasso xsara, i10
Membership Number: 10
Post Re: Changing a Thermostat on a Vitara?
Not done one in many a year Bob, i dont remember it been hard lol!!, just make sure the two mating surfaces have been cleaned up, dont know if you need a proper gasket or the stuff out of a tube would do the job?. Top water up and check after it's warmed up for leaks, might be worth checking your anti-freeze at the same time m8. I'm sure some one will answer better than me.

Anywhere in Wales (north) would be good lol

Andy :wink:

_________________
The Future's Skint, The Future's JIMNY

No, Not Yet !!!!!!!!


Fri Dec 28, 2007 8:08 pm
Profile

Mud For Blood
Mud For Blood
User avatar

Joined: Fri Mar 09, 2007 10:07 pm
Posts: 502
Karma: 0

Location: stockton on tees
My Vehicle(s): SJ / Other
Membership Number: 0
Post Re: Changing a Thermostat on a Vitara?

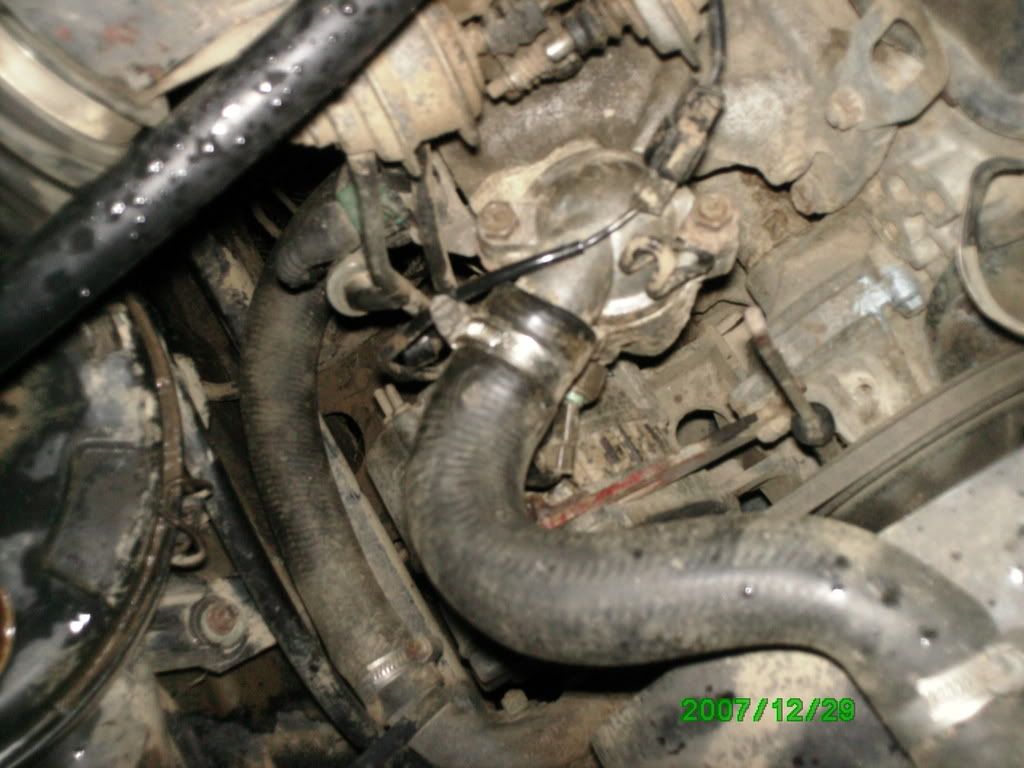

here you go 8)
i know its a sammy but there the same :wink:

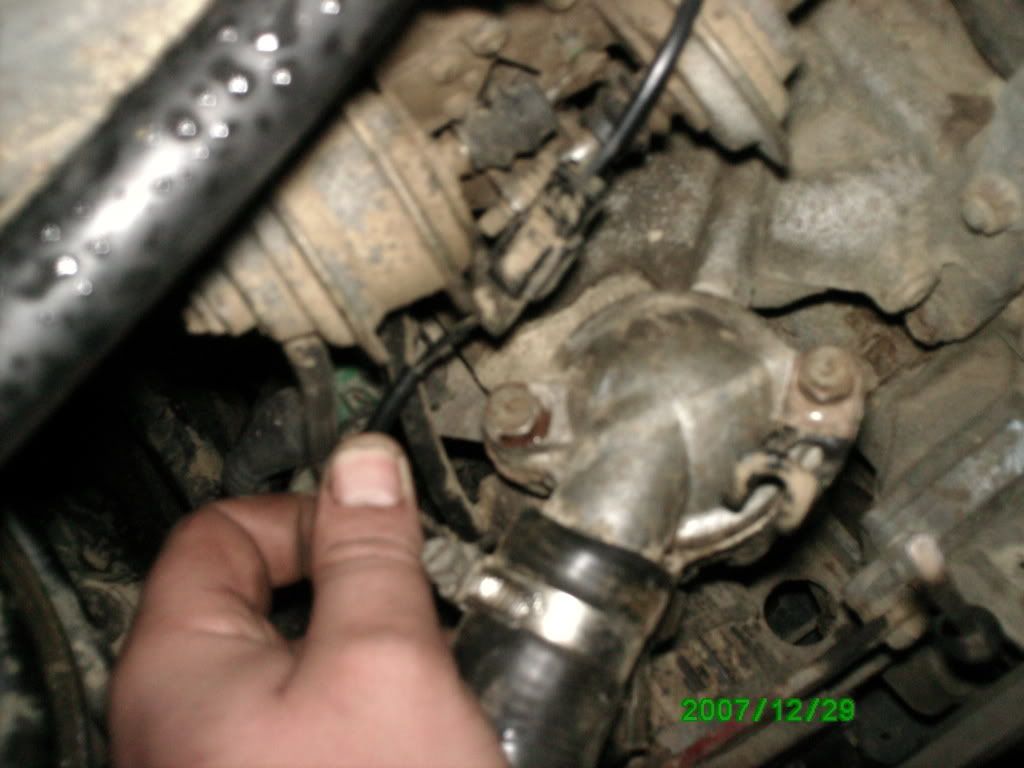

1st take the 2x 13mm bolts out

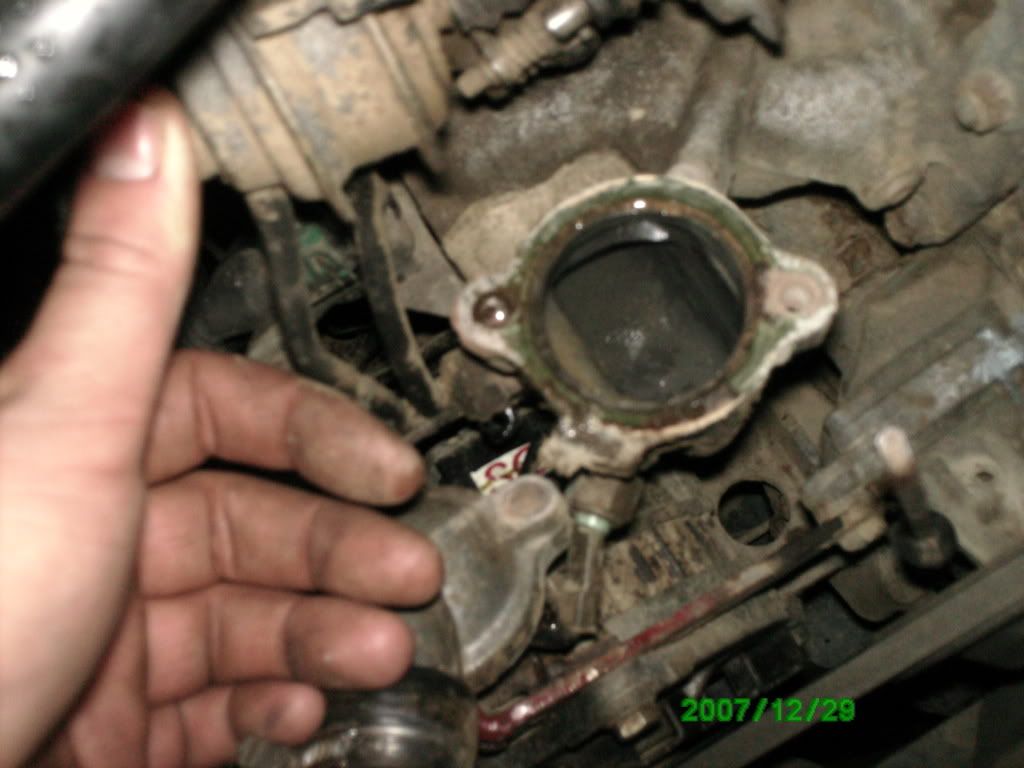

then it should just pop off (note mine hasnt got one fitted tho)
the thermostat should pull out
and pop the new one in

then put the top back on and put the bolts in jobs a goodn

note mine has no water in or the thermostat would be full too :wink:

_________________


Sat Dec 29, 2007 4:39 pm
Profile

Post Re: Changing a Thermostat on a Vitara?
:lol: LOL

Errrr, I think even I might manage that! :lol: :wink:

Thanks Spoofer, owe you one... :wink:

Me


Sat Dec 29, 2007 9:13 pm

Mud Mad
Mud Mad
User avatar

Joined: Wed Dec 10, 2008 9:17 pm
Posts: 481
Karma: 0

Location: Stoke on Trent
Membership Number: 60
Post Re: Changing a Thermostat on a Vitara?
I did mine on a lane back in jan this year as it went into the red on temp gauge

was a cold day and it was cold in truck that day but if I can do it anyone can

cheers

chukkieegg :)

_________________
Second Star on the right and carry on until Sunday


Wed Apr 29, 2009 11:16 am
Profile

Winch Bitch
Winch Bitch

Joined: Tue Jan 13, 2009 1:16 pm
Posts: 111
Karma: 0

Location: Northern Ireland
My Vehicle(s): Vitara / SJ / Jimny / Other
Membership Number: 0
Post Re: Changing a Thermostat on a Vitara?
Yup wee buns just did mine the other week when i was replacing the headgasket, and like he says 2 bolt it all ya gotta take out,

_________________
Del


Wed Apr 29, 2009 12:04 pm
Profile

Offroad Guru
Offroad Guru

Joined: Fri Jan 18, 2008 9:52 pm
Posts: 1017
Karma: 3

Location: Brinkworth, Wiltshire
My Vehicle(s): Vitara / SJ / Jimny / Other
Membership Number: 69
Post Re: Changing a Thermostat on a Vitara?
There are two different types, one has a conventional paper type gasket and the other an O-ring. You need to get the right thermostat to fit the housing and also the right temperature rating, Suzuki changed the spec at some point.

Edit: The stat should be rated at 82C. You must also ensure that the air bleed valve is to the front of the engine.

_________________
Some Suzukis and a bunch of motorbikes


Thu Apr 30, 2009 4:34 pm
