differant mount on steel diff

Anything to do with the Vitara Series
User avatar
vitara_mad
Offroad Guru
Offroad Guru
Posts: 798
Joined: Wed Dec 16, 2009 4:03 pm
My Vehicle(s): suzuki vitara
Location: dronfield , derbyshire

Thu Jun 10, 2010 1:39 pm

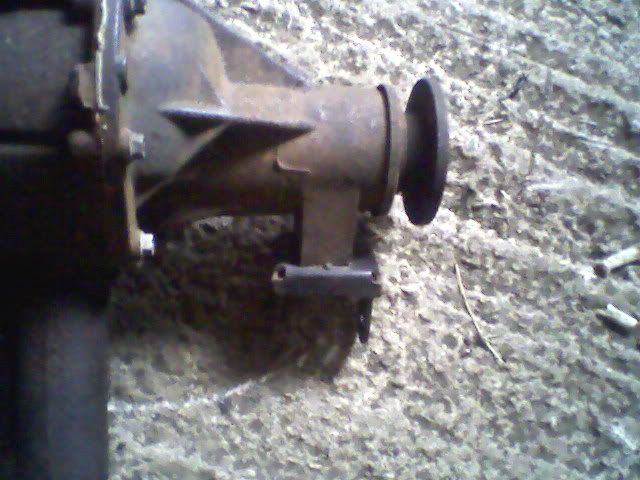

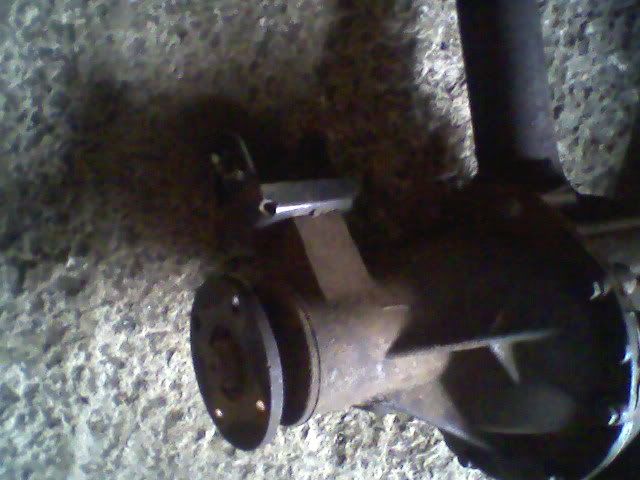

ive got this steel diff but it has a differant mount to the standard vit so is there a mount on the gv that it came off that will make it fit a standard vit or do i need to make something

if you have a pic of a mount i need that would be great

cheers


Wilky
Mud Mad
Mud Mad
Posts: 256
Joined: Sun Jan 18, 2009 5:39 pm
My Vehicle(s): Vitara / SJ / Jimny / Other
Location: West Yorkshire

Thu Jun 10, 2010 2:09 pm

Looks like it needs the "Cotton Reel" mount, probably came off an XL7 GV.
As far as I'm aware, they were the only ones that were different.


.
So....if slim folk go skinny dipping at the seaside, what do fat folk do..............Chunky Dunking?
User avatar
sae70
MUD NUT
MUD NUT
Posts: 3010
Joined: Thu Oct 11, 2007 10:04 pm
My Vehicle(s): Land Cruiser
Location: Essex
Contact:

Thu Jun 10, 2010 2:30 pm

Yes it's from off of an XL-7 GV :)

Very rare, very strong & desirable :)

You will definetly need the cotton reel mount though :| So run back to ware you got the axle & get this bit as well :-ss
Oh & don't forget the long bolt :-bd

Someone else had one of these rescently, this is only the second or third one of these XL-7 axles I've ever seen so very rare :)

Here's the link to the topic viewtopic.php?f=15&t=11608" onclick="window.open(this.href);return false;

Oh & here's another link that may assist you viewtopic.php?f=15&t=1711" onclick="window.open(this.href);return false; :)

Actually you could probaly just buy the mount & the long bolt from a Suzuki main stealer :)

I wonder what the part #'s are & what price Suzuki put on these items :?:
You do not have the required permissions to view the files attached to this post.
Last edited by 1nkling on Thu Jun 10, 2010 2:46 pm, edited 1 time in total.
Reason: Removed multiple posts - There is no need and adds more strain to the database - There is an edit button on your posts, please use it.
Regards

Steven
User avatar
1nkling
Site Admin
Site Admin
Posts: 3509
Joined: Sat Apr 12, 2008 5:29 pm
My Vehicle(s): 09 Landrover Freelander 2
Location: Devon
Contact:

Thu Jun 10, 2010 2:56 pm

Not sure if this is right but..


If it is then:

10 = 27641-52D00
11 = 27550-52D00
12 = 09103-12044
14 = 09112-10020

:biggrin:
User avatar
NigeVitara
Mud Mad
Mud Mad
Posts: 268
Joined: Fri Feb 13, 2009 9:14 pm
My Vehicle(s): Vitara
Location: Stafford

Thu Jun 10, 2010 3:08 pm

That was me that had one recently.

When I went to the scrap yard to collect it I made sure I the bracket as well, thats to advice from guys on here.

I have seen this axle on TD GV's as well as XL-7's.

Haven't fitted mine yet, still in the shed. The plan was to fit it when I smash my ali one, just haven't managed it yet!
Nige.


N Reg Vit, 3"sus, 2"body, 31"kumho MT, lockright rear locker, C8000EWX winch.......
User avatar
vitara_mad
Offroad Guru
Offroad Guru
Posts: 798
Joined: Wed Dec 16, 2009 4:03 pm
My Vehicle(s): suzuki vitara
Location: dronfield , derbyshire

Thu Jun 10, 2010 3:33 pm

thanks all for the help & the pic is just the job ive emailed it to the seller of the diff & hopefully they still got the mount.

how does it fasten to the cross member does holes have to be drilled in it as the standard diff only bolts with one bolt in center on the mount

cheers :-bd
User avatar
NigeVitara
Mud Mad
Mud Mad
Posts: 268
Joined: Fri Feb 13, 2009 9:14 pm
My Vehicle(s): Vitara
Location: Stafford

Thu Jun 10, 2010 3:41 pm

The standard diff only has one bolt hole to the bracket, but the bracket is bolted to the cross member by two bolts which are in the same position as your new steel one. :-bd
Nige.


N Reg Vit, 3"sus, 2"body, 31"kumho MT, lockright rear locker, C8000EWX winch.......
User avatar
sae70
MUD NUT
MUD NUT
Posts: 3010
Joined: Thu Oct 11, 2007 10:04 pm
My Vehicle(s): Land Cruiser
Location: Essex
Contact:

Fri Jun 11, 2010 7:52 am

I have seen this axle on TD GV's as well as XL-7's.
Reminds me of mine :)
Have spoken to the salvage yard who supplied me the axle today and he assures me that the axle has come off a 2003 diesel GV with 30000miles.

He has also helpfully given me the chassis number JSAFTB83V00102260. I wonder if this tells anyone anything. May call the main dealer later and order gasket/seal kit for axle they would probably no.

More importantly he has still got the thing that looks like a cotton reel in a cradle (his words) and the bolt. I will post some photos of it when it lands.
Have just spoken with the parts department @ my local Suzuki dealers Levoi's of Colchester to order new seals for axle. He has said that the chassis number confirms the axle is from a 2003 registered 2.0 diesel 5 speed manual GV.

Wonder if this will help anyone in the future.

Steven.
Thing is they have always been known as the XL-7 front axle & you know how mud sticks :)

Must start looking under later GV's in Tescos car park :)
Regards

Steven
User avatar
vitara_mad
Offroad Guru
Offroad Guru
Posts: 798
Joined: Wed Dec 16, 2009 4:03 pm
My Vehicle(s): suzuki vitara
Location: dronfield , derbyshire

Fri Jun 11, 2010 1:59 pm

this one was off a 2003 td as well

not having much luck getting the mount so if anyone has one spare let me know otherwise it looks like ive got a expensive lump of scrap on my hands :((

cheers
jimny-dave
MUD NUT
MUD NUT
Posts: 2585
Joined: Fri Feb 26, 2010 12:50 pm
My Vehicle(s): Modest Lil' Jimny ;)
Location: 'Laning-Heaven (Waleshire)

Fri Jun 11, 2010 3:29 pm

Rob @ the ORA sells a multi-use sleeve and bush that would do the job.... you'd just need some nice thick box section cut up to suit and welded on the bottom, and the holes drilled and nuts welded above, you could soon make / get one made if you're stuck...

We can help with hole centre measurements and offset for where the mount should sit...

I've got an axle sat on the garage floor with a standard mount we could get measurements off...

All is not lost yet bud' :ymhug:
Wandered off as it's so quiet... You know where I am if you want me... Dave :(
User avatar
vitara_mad
Offroad Guru
Offroad Guru
Posts: 798
Joined: Wed Dec 16, 2009 4:03 pm
My Vehicle(s): suzuki vitara
Location: dronfield , derbyshire

Fri Jun 11, 2010 3:53 pm

thanks for the advise dave i will see what bits of tube & bushes ive got laying about & see if i can make one

i might need some measurement for the holes that mount it to the crossmember will ask on here if i do

cheers
jimny-dave
MUD NUT
MUD NUT
Posts: 2585
Joined: Fri Feb 26, 2010 12:50 pm
My Vehicle(s): Modest Lil' Jimny ;)
Location: 'Laning-Heaven (Waleshire)

Fri Jun 11, 2010 4:01 pm

PM me your address quickly and I'll get a bush and sleeve in the post now...

I've got a spare one of Rob's here I can post in the next 20 minutes... sat in the post office, it's wrapped and just needs the address on the padded envelope! ;)

Dave
Wandered off as it's so quiet... You know where I am if you want me... Dave :(
User avatar
vitara_mad
Offroad Guru
Offroad Guru
Posts: 798
Joined: Wed Dec 16, 2009 4:03 pm
My Vehicle(s): suzuki vitara
Location: dronfield , derbyshire

Fri Jun 11, 2010 4:11 pm

Vitara-Dave wrote:PM me your address quickly and I'll get a bush and sleeve in the post now...

I've got a spare one of Rob's here I can post in the next 20 minutes... sat in the post office, it's wrapped and just needs the address on the padded envelope! ;)

Dave

pm sent cheers dave your a (*)
jimny-dave
MUD NUT
MUD NUT
Posts: 2585
Joined: Fri Feb 26, 2010 12:50 pm
My Vehicle(s): Modest Lil' Jimny ;)
Location: 'Laning-Heaven (Waleshire)

Fri Jun 11, 2010 4:20 pm

No worries! :biggrin:

It's in the post and the postie's here collecting the post...
Wandered off as it's so quiet... You know where I am if you want me... Dave :(
miksyellowsj
Mud For Blood
Mud For Blood
Posts: 622
Joined: Tue Sep 22, 2009 7:00 pm
My Vehicle(s): Vitara / SJ / Jimny / Other
Location: rotherham
Contact:

Fri Jun 11, 2010 6:55 pm

Vitara-Dave wrote:No worries! :biggrin:

It's in the post and the postie's here collecting the post...
top man dave
:-bd :-bd
